2-288core Anti Rodent Steel Armored Outdoor Fiber Optic Cable GYTY53

Name: 2288core Anti Rodent Steel Armored Outdoor Fiber Optic Cable GYTY53
Brand: FURONG
Price: 1 USD

Wholesale 2-288core Anti Rodent Steel Armored Outdoor Fiber Optic Cable GYTY53 from china suppliers

Brand Name : FURONG

Model Number : GYTY53

Certification : ISO, SGS, ROHS

Place of Origin : GUANGDONG

MOQ : 1000M

Price : NEGOTIABLE

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2000KM/DAY

Packaging Details : 2KM/ROLL

FIBER TYPE : SM, OM1, OM2, OM4, OM3

FIBER COUNT : 2-288C

OUT SHEATH : PE/LSZH/PU

OEM : LOGO, COMPANY NAME, PART NUMBER CUSTOMIZED

ARMORED : YES

APPLICATION : TELECOM

Contact Now

2-288core Anti Rodent Steel Armored Fiber Optic Outdoor Cable GYTY53

Description

GYTY53 fiber optic cable is used for direct buried underground, it suit for long distance and LAN fiber communications, we supply both the single mode GYTY53 cable and multimode GYTY53 cables.

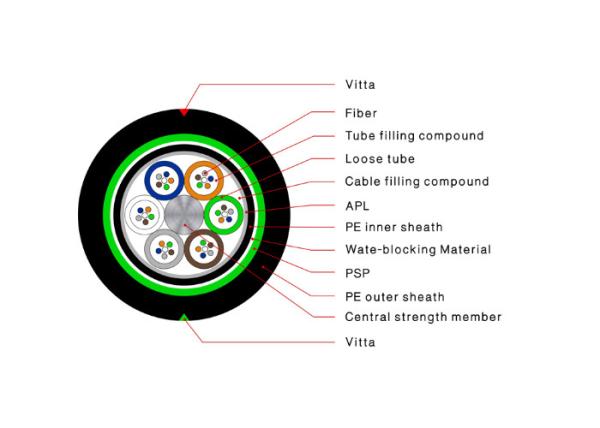

GYTY53 fiber cable is stranded loose tube structure with steel tape double sheaths, the loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube ,which keeps the fiber stress-free while the cable is subjected to longitudinal stress. GYTY53 cable is steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance. Metal strength member provides excellent strain performance.

Features:

--Good mechanical and temperature performance
--High strength loose tube that is hydrolysis resistant
--Special tube filling compound ensure a critical protection of fiber
--Crush resistance and flexibility
--PE/LSZH sheath protects cable from ultraviolet radiation
--100% cable core filling

General Details:

		G.652D	50/125μm	62.5/125μm
Attenuation	@850nm		≤3.0 dB/km	≤3.0 dB/km
(+20℃)	@1300nm		≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km
	@1550nm	≤0.22 dB/km
Bandwidth (Class A)	@850nm		≥500 MHz·km	≥200 MHz·km
	@1300nm		≥1000 MHz·km	≥600 MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelengthλcc		≤1260nm

2-288core Anti Rodent Steel Armored Outdoor Fiber Optic Cable GYTY53
