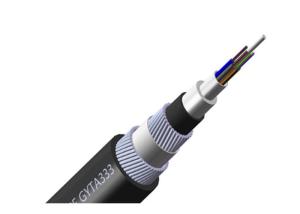

Double steel wire armored fiber optic cable Aluminium FE sheath

Name: Double steel wire armored fiber optic cable Aluminium FE sheath
Brand: Furong
Price: 1 USD

Wholesale Double steel wire armored fiber optic cable Aluminium FE sheath from china suppliers

Brand Name : Furong

Model Number : GYTA333

Certification : SGS, ISO

Place of Origin : DONGGUANG CHINA

MOQ : 2KM

Price : NEGOTIABLE

Supply Ability : 2000KM/DAY

Packaging Details : WOODEN DRUM

Loose Tube Material : PBT

Application : Submarine

Fiber Core : 2-144

FIBER TYPE : SM OR MM

Structure : Central Loose Tube

Strength Member : Steel Armored

Contact Now

Feature:

--Adopted to outdoor distribution.
-Suitable for aerial duct and buried method..

--Long distance and local area network communication

Characteristics:

--Steel wire strength, filler protect tube fiber, steel tape armord
-Good ultra violet radiation resistant property
--Double sheath. Good moisture-resistance

Items	Description
Number of fiber	12-144cores
Filling rope	0
Moisture Barrier	Water blocking system

Fiber Characteristic

Fiber style			Unit	SM G652D	MM 50/125	MM 62.5/125
condition			nm	1310/1550	850/1300	850/1300
attenuation			dB/km	≤0.36/0.23	≤3.0/1.0	≤3.0/1.0
Dispersion		1310nm	Ps/(nm*km)	≥-3.4 ≤3.4	.....	.....
		1550nm	Ps/(nm*km)	≤18	.....	.....
		1625nm	Ps/(nm*km)	≤22
Bandwidth		850nm	MHZ. KM	.....	≧400	≧160
Bandwidth		1300nm	MHZ. KM	.....	≧800	≧500
Zero dispersion wavelength			nm	≧1302,≤1322	.....	.....
Zero dispersion slope			Ps(nm2*km)	≤0.091	.....	.....
PMD Maximum Individual Fiber			Ps√km	≤0.2	.....	.....
PMD Design Link Value			Ps√km	≤0.08	.....	.....
Fibre cutoff wavelength λc			nm	≧1180,≤1330	.....	.....
Cable cutoff wavelength λcc			nm	≤1260	.....	.....
MFD	1310nm		um	9.2±0.4	.....	.....
MFD	1550nm		um	10.4±0.8	.....	.....
Numerical Aperture(NA)				......	0.200±0.015	0.275±0.015
Step(mean of bidirectional measurement)			dB	≤0.05	≤0.10	≤0.10
Irregularities over fiber length and point discontinuity			dB	≤0.05	≤0.10	≤0.10
Difference backscatter coefficient			dB/km	≤0.03	≤0.08	≤0.10
Attenuation uniformity			dB/km	≤0.01	.......	.......
Core diameter			um	......	50±1.0	62.5±2.5
Cladding diameter			um	125.0±0.1	125.0±0.1	125.0±0.1
Cladding non-circularity			%	≤1.0	≤1.0	≤1.0
Coating diameter			um	242±7	242±7	242±7
Coating/chaffinch concentrically error			um	≤12.0	≤12.0	≤12.0
Coating non circularity			%	≤6.0	≤6.0	≤6.0
Core/cladding concentricity error			um	≤0.6	≤1.5	≤1.5
Curl(radius)			um	≤4	.....	.....
