Rohs Compliant 12c Accommodate 1*8 Plc Splitter Pole Or Wall Mounted Fiber Optic Terminal Box

Product Categories

SHENZHEN FURONG FIBER OPTIC CABLE CO.,LTD

Contact Now

Rohs Compliant 12c Accommodate 1*8 Plc Splitter Pole Or Wall Mounted Fiber Optic Terminal Box

Name: Rohs Compliant 12c Accommodate 18 Plc Splitter Pole Or Wall Mounted Fiber Optic Terminal Box
Brand: Furong
Price: 1 USD

Wholesale Rohs Compliant 12c Accommodate 1*8 Plc Splitter Pole Or Wall Mounted Fiber Optic Terminal Box from china suppliers

Brand Name : Furong

Model Number : FC-12C

Certification : ROHS

Place of Origin : CHINA

MOQ : 1

Price : Negotiable

Packaging Details : carton

Material : ABS+PC

Fiber Ports : 12OUTLETS

IP Grade : 65

Application : Outdoor

Color : Grey or Customized

Fiber Core : 12C

Contact Now

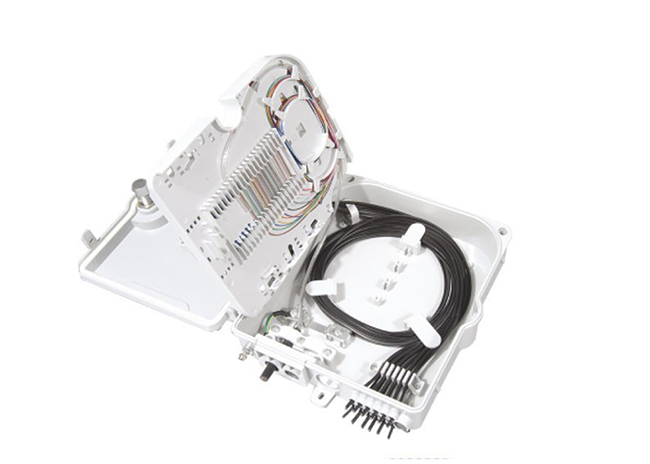

 FC-12C fiber access termination box is able to hold up to 12 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

 Features --Water-proof design with IP-66 Protection level. --Integrated with splice cassette and cable management rods. --Manage fibers in a reasonable fiber radius condition. --Easy to maintain and extend the capacity. --Fiber bend radius control more than 40mm. --Suitable for the fusion splice or mechanical splice. --1*8 Splitter can be installed as an option. --Efficient cable management. --12 ports cable entrance for drop cable.

 Configuration

Fiber Terminal Box FC-12C Parameter
Material	Size	Max Capacity			Installation Size	Weight	Color
PC+ABS	AxBxC(mm)	SC	LC	PLC	DxE(mm)	1.5kg	Light Grey
PC+ABS	235x200x62	12 Ports	24 Ports	1x8(SC)	168x210	1.5kg	Light Grey

Rohs Compliant 12c Accommodate 1*8 Plc Splitter Pole Or Wall Mounted Fiber Optic Terminal Box
